Calculating the area under a curve or finding definite integrals can sometimes feel overwhelming, especially when traditional analytical methods fall short. But what if there was a way to simplify this process while maintaining accuracy? Simpson’s Rule offers a brilliant solution by using parabolas to approximate the curve of a function. This method not only improves precision but also provides an intuitive approach to solving complex integrals. Let’s explore how it works and why it’s a go-to technique for numerical integration.
From Rectangles to Parabolas: The Beauty of Simpson’s Rule

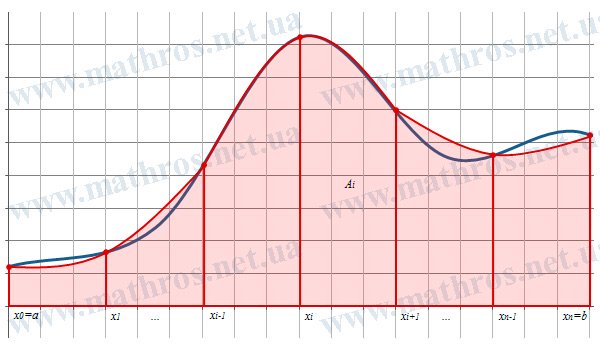

What makes Simpson’s Rule stand out from other numerical integration methods? Unlike the rectangular or trapezoidal rules, Simpson’s Rule uses parabolas to approximate the curve of a function. Why parabolas? Because they are better suited to capturing the nuances of a curve, leading to more accurate results.
Here’s how it works in a nutshell:
- Divide the Interval: Start by dividing the interval [a, b] into an even number of subintervals. This ensures that we can pair adjacent points to create parabolas.
- Fit the Parabolas: For every two subintervals (or three adjacent points), a parabola is constructed that closely follows the curve of the function.
- Sum the Areas: Finally, calculate the area under each parabola and sum them up to approximate the integral.
This method leverages the power of quadratic polynomials to provide a refined approximation, offering greater accuracy compared to simpler methods.
The Math Behind the Method: Constructing Parabolas
Simpson’s Rule is built on a solid mathematical foundation. At its heart lies the approximation of a curve by a parabola. Let’s break it down step by step.
Approximating the Curve with a Parabola
The process begins with approximating the function f(x) at a point xi within the interval [xi-1, xi+1]. Using the Taylor series expansion, the function can be expressed as:
To keep things simple, we focus only on the first three terms, which form a quadratic polynomial—our parabola:
But how do we determine the derivatives f′(xi) and f″(xi)? That’s where finite difference formulas come in:
Substituting these into the Taylor series gives us a practical equation for the parabola:
Calculating the Area Under the Parabola
Once we’ve defined the parabola, the next step is to calculate the area beneath it. Using the formula for integration, we find the area under each parabola:
Simplifying this expression results in:
This formula gives the area under the parabola for a single interval. By summing up the areas of all such parabolas, we get the Simpson’s Rule formula:
Weighing the Pros and Cons: Is Simpson’s Rule the Right Choice?
Before diving into practical applications, let’s examine the strengths and weaknesses of Simpson’s Rule. Understanding these can help you decide when it’s the ideal tool for solving integrals and when another method might be a better fit.
Advantages
- Exceptional Accuracy: By using parabolas to approximate the curve of a function, Simpson’s Rule delivers a higher level of precision than many other numerical integration methods. This makes it especially effective for intervals where the function exhibits significant changes.
- Simplicity in Formula: Despite its sophistication, the formula for Simpson’s Rule is easy to implement, even for beginners in numerical methods. Its straightforward approach balances complexity and usability.
- Efficiency for Smooth Functions: For functions that are smooth and continuous, Simpson’s Rule achieves excellent results with fewer subintervals, reducing the computational workload without sacrificing accuracy.
Disadvantages
- Rigid Subinterval Requirement: One limitation of Simpson’s Rule is the requirement to divide the interval into an even number of subintervals. This constraint can reduce flexibility when adapting the method to specific problems.
- High Computational Cost: For functions with rapid changes or intricate behaviors, Simpson’s Rule may require a significant number of subintervals, increasing the number of function evaluations and computational effort.
- Resource-Intensive: The need to compute function values (and sometimes derivatives) at multiple points can make Simpson’s Rule demanding in terms of resources, especially for large or complex integrals.
Simpson’s Rule: Solving Integrals Step by Step
Now that we understand how Simpson’s Rule works, let’s see it in action through a few examples. We’ll apply this method to calculate definite integrals and explore how it approximates the area under the curve in different scenarios.

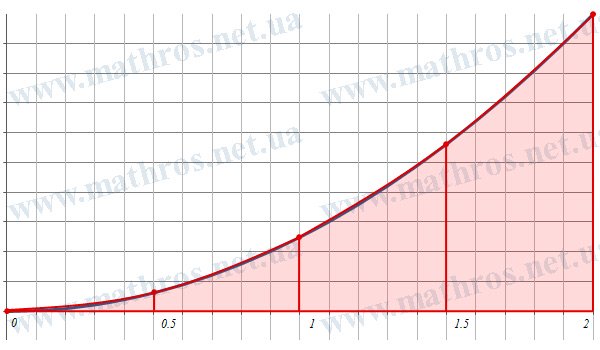

Example 1: Calculating the Integral of f(x)=x2 Over [0, 2]
Let’s approximate the integral of f(x)=x2 using Simpson’s Rule with n=4 subintervals.
- Divide the Interval: Split [0, 2] into four equal parts, each of width h=0.5.
- Calculate Function Values: The function values at the endpoints x0=0, x1=0.5, x2=1, x3=1.5 and x4=2 are:
- Calculate the Approximate Integral: Use the Simpson’s rule formula:
Result: The approximate integral is 2.6672.

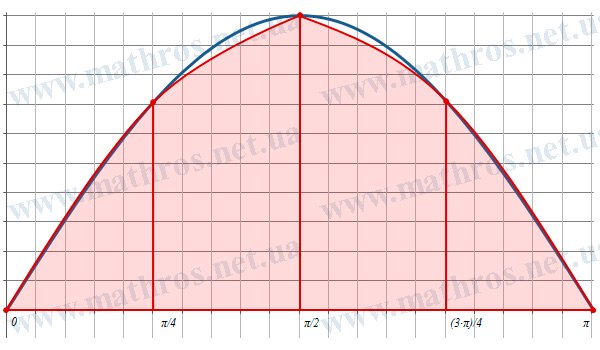

Example 2: Calculating the Integral of f(x)=sin(x) Over [0, π]
Next, let’s use Simpson’s Rule to approximate the integral of f(x)=sin(x) over the interval [0, π] with n=4 subintervals.
- Divide the Interval: Split [0, π] into four equal parts, each of width h=π/4.
- Calculate Function Values: The function values at the endpoints are:
- Calculate the Approximate Integral:
Result: The approximate integral is 2.0528.
Example 3: Calculating the Integral of f(x)=e-x2 Over [-1, 1]
Finally, let’s calculate the integral of f(x)=e-x2 over the interval [-1, 1] using Simpson’s Rule with n=10 subintervals for a more precise result.
- Divide the Interval: Split [-1, 1] into four equal parts, each of width h=0.2.
- Calculate Function Values: For convenience, we will list the calculated values of the function at the endpoints in a table:
| i | xi | f(xi) |
|---|---|---|
| 0 | x0=-1 | f(x0)=e-12=0.3679 |
| 1 | x1=-0.8 | f(x1)=e-0.82=0.5273 |
| 2 | x2=-0.6 | f(x2)=e-0.62=0.6977 |
| 3 | x3=-0.4 | f(x3)=e-0.42=0.8521 |
| 4 | x4=-0.2 | f(x4)=e-0.22=0.9608 |
| 5 | x5=0 | f(x5)=e02=1 |
| 6 | x6=0.2 | f(x6)=e0.22=1.0408 |
| 7 | x7=0.4 | f(x7)=e0.42=1.1735 |
| 8 | x8=0.6 | f(x8)=e0.62=1.4333 |
| 9 | x9=0.8 | f(x9)=e0.82=1.8965 |
| 10 | x10=1 | f(x10)=e12=2.7183 |
- Calculate the Approximate Integral:
Result: The approximate integral is 1.8979.
Exploring Further: Advanced Numerical Integration Techniques
Numerical integration offers a wealth of methods, each suited to specific types of problems. If Simpson’s Rule piqued your interest, here are some additional techniques worth exploring. Each of these methods provides unique advantages, helping you tackle a broader range of integration challenges.
- Monte Carlo Method – An iterative refinement approach that improves accuracy by combining the trapezoidal rule with extrapolation techniques.
- Romberg’s method – An iterative refinement approach that improves accuracy by combining the trapezoidal rule with extrapolation techniques.
- Double Integrals with Grid Methods – A method that divides the integration domain into small cells, summing function values over the grid to approximate double integrals.
Turning Knowledge into Action: Building a Numerical Integration Tool

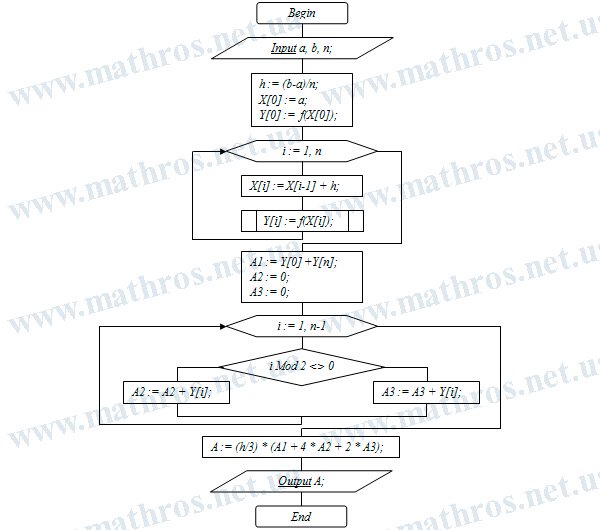

Now that you’ve explored the fundamentals and worked through practical examples, it’s time to bring everything together. Developing a simple program to implement a numerical integration method like the Simpson’s rule is a fantastic way to deepen your understanding. Below is a flowchart outlining the key steps for creating a calculator for numerical integration. Adapting these steps to your preferred programming language will empower you to build a reliable tool for approximating definite integrals.
