The Runge-Kutta-Merson method is one of the most effective techniques for solving ordinary differential equations (ODEs). Its main advantage is its ability to automatically adjust the step size, which helps achieve the perfect balance between accuracy and computational efficiency.
Why is this important? If the step size is too large, the result may have a significant error. On the other hand, if the step is too small, the number of computations increases drastically, consuming unnecessary resources. This is where the adaptive approach of the Runge-Kutta-Merson method comes in—it analyzes the error at each step and adjusts the step size automatically to maintain the required accuracy without excessive calculations.
Why a Fixed Step Size is Not Always the Best Choice
The classic fourth-order Runge-Kutta method is highly accurate, but it has a major drawback—it uses a fixed step size. Why is this a problem? Imagine you are solving an equation where the function changes very quickly. If the step is too large, you might miss important details, leading to inaccurate results. On the other hand, if the function changes slowly, a small step only increases computation time without improving accuracy.
To overcome these issues, the adaptive approach of the Runge-Kutta-Merson method works as follows:
- If the error is too large, the step size decreases.
- If the error is small, the step size increases.
- If the error is within the acceptable range, the step size remains unchanged.
This way, the method does not waste computational resources on unnecessary calculations while maintaining high accuracy.
How the Runge-Kutta-Merson Method Works: Detailed Explanation
Consider a first-order ordinary differential equation:
with the initial condition y(x0)=y0 over the interval [a, b].
The first step uses an initial step size h=(b-a)/n similar to the classic Runge-Kutta method. However, in the Runge-Kutta-Merson method, this step size is adjusted dynamically based on the required accuracy.
Step-by-Step Computation
The method uses five intermediate coefficients:
Using these coefficients, the next approximation is calculated as:
To check accuracy, an additional computation is performed:
Why is this necessary? The value of R indicates how far the obtained value deviates from the “ideal” solution. If |R| exceeds the given tolerance ε, the step size h is halved, and the calculation is repeated. If |R| is smaller than ε/30, the step can be doubled, saving computational time.
Important Note: If at the last step, the computed xn=xn-1+h exceeds the endpoint b, the step size h should be adjusted to precisely reach the final point.
Why the Runge-Kutta-Merson Method is So Effective
Functions in real-world problems often change unevenly—sometimes they grow or decrease rapidly, and other times they remain almost constant. This is why a fixed step size is not always the best choice.
The Runge-Kutta-Merson method offers several advantages:
- Increased accuracy without excessive computations, as it reduces the step size when needed.
- Time-saving by increasing the step size where function variations are minimal.
- Flexibility in adapting to the complexity of equations, making it especially useful in physics, engineering, and other sciences.
Because of these benefits, this method is widely used in mathematical modeling, ensuring high precision while optimizing computational resources.
Solving Differential Equations Using the Runge-Kutta-Merson Method: A Practical Example
Now that we’ve explored how the Runge-Kutta-Merson method works and why it’s so effective, let’s apply it in practice. To see just how well this method approximates an exact solution, we’ll solve a concrete problem step by step.
Example 1: Find an Approximate Solution to the Differential Equation y’=y-x with the Initial Condition y(0)=1.5 Over the Interval [0, 1] with Accuracy ε=0.1. Compare the results with the exact solution: y(x)=0.5⋅ex+x+1
We start by selecting the initial step size: h=(1-0)/5=0.2. Now, we apply the Runge-Kutta-Merson method, computing approximate function values step by step.

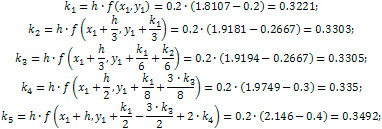

For the first point at x1=0.2, we calculate the intermediate coefficients:
Using these, we find the approximate value at x1:
To check the accuracy, we calculate the error:
Since |R| is within the acceptable accuracy, we keep the step size unchanged and proceed to the next point.
At x2=0.4, we calculate new coefficients:
The function value at x2 is:
Computing the error:
Since the error is still within the acceptable range, we continue. Following the same process, we compute values for x3=0.6, x4=0.8, and x5=1.
Now, let’s compare the obtained values with the exact solution:
Comparing these results, we can see that the Runge-Kutta-Merson method produces values that are extremely close to the exact solution. The minimal difference confirms the high accuracy and efficiency of this method in solving ordinary differential equations.
Explore More Numerical Methods for Differential Equations
The Runge-Kutta-Merson method is just one of many powerful techniques for solving differential equations. If you want to explore more, check out these approaches:
- Adams Method – A predictor-corrector method that uses multiple previous steps for high accuracy.
- Milne’s Method – Another predictor-corrector method focused on stability in computations.
- Euler’s Method – A simple and fast approach, often used when extreme accuracy is not required.
Each of these methods has its own strengths, and knowing them allows you to choose the best one for a given problem.
Practice Time: Write Your Own Code!
Want to deepen your understanding of numerical methods? Try implementing the Runge-Kutta-Merson method in your favorite programming language! By coding the algorithm, you’ll gain a better grasp of its logic and improve your programming skills.
Now it’s your turn—write the code, run it, and test how well the method performs!
